Pure Sine Wave Inverter 1000W 1600W 2000W DC 12V / 24V AC 110V 220V 50Hz 60Hz Power Inverter Home Car Converter Solar Energy

681 orders
()
Free
Total Price:
Best price guarantee
Quantity:
View cart
Buyer protection
Safe shopping
Easy returns and refunds
Free shipping worldwide

This pure sine wave power inverter.
2000w / 3000w / 4000w with peak power.
Continuous power (nominal power) 1000W / 1500W / 2000W.
If you operate the inverter with some heavy load / inductive load,
Please contact us before ordering.
Thank you.

Output voltage wave: pure sine wave
Input voltage: DC12V / 24V
Output delay: AC220V /110V
Output frequency: 50HZ /60H

Peak power: 1600W
Continuous power: 800W
Size: 25.8 * 10.3 * 6cm
Package weight: 1.35KG

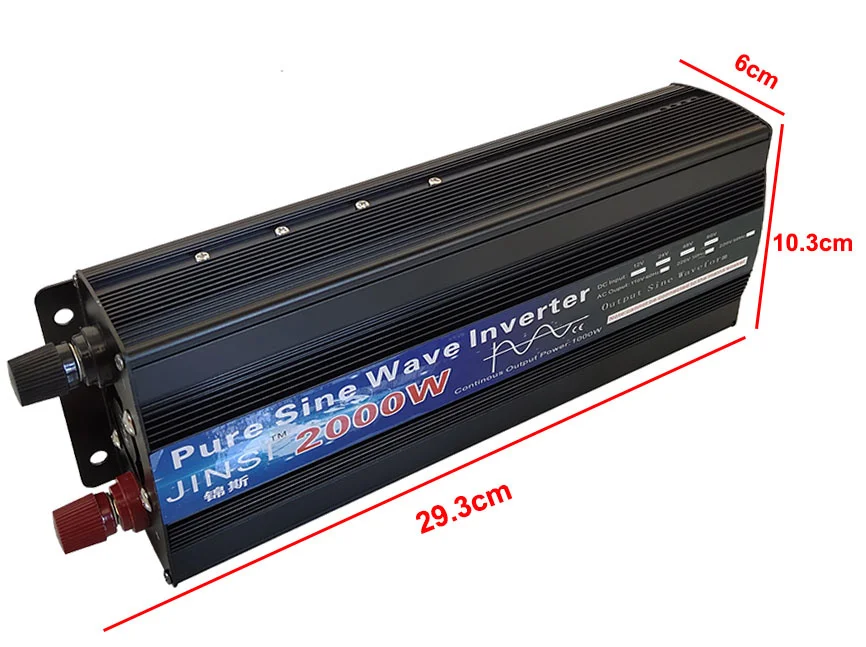

Peak power 2000W
Continuous power 1000W
Size: 29.3*10.3*6cm
Package weight 1.5kg

2600W pure sine wave
Peak power 2600W
Continuous power 1300W
Size:33.3CM×10.3CM×6CM
Package weight 1.75kg

When purchasing an inverter, you must first understand the voltage and frequency used in your country. Buying an inverter according to the frequency of your country will greatly improve the conversion efficiency of the inverter. If you have any questions, please contact us before purchasing. Thank you!

Country / voltage / frequency
Korea: 220V / 60Hz
Australia: 230V / 50Hz
Brazil: 110V / 220V / 60Hz
Chile: 220V / 50Hz
Colombia: 110V / 60Hz
Denmark: 230V / 5oHz
Finland: 230V / 50Hz
France: 230V / 50Hz
Israel: 230V / 50Hz
Italy: 230V / 50Hz
Russia: 220V / 50Hz
United States: 120V / 220V / 60Hz
Turkey: 230V / 50Hz
Spain: 230V / 50Hz
Mexico: 127V / 60Hz
PuertoRico: 120v60hz
Saudi arabia: 127V / 220V / 60Hz
South africa: 220V / 230V50Hz
Sweden: 230V / 50Hz
Switzerland: 230V / 50Hz
United kingdom: 230V / 50Hz

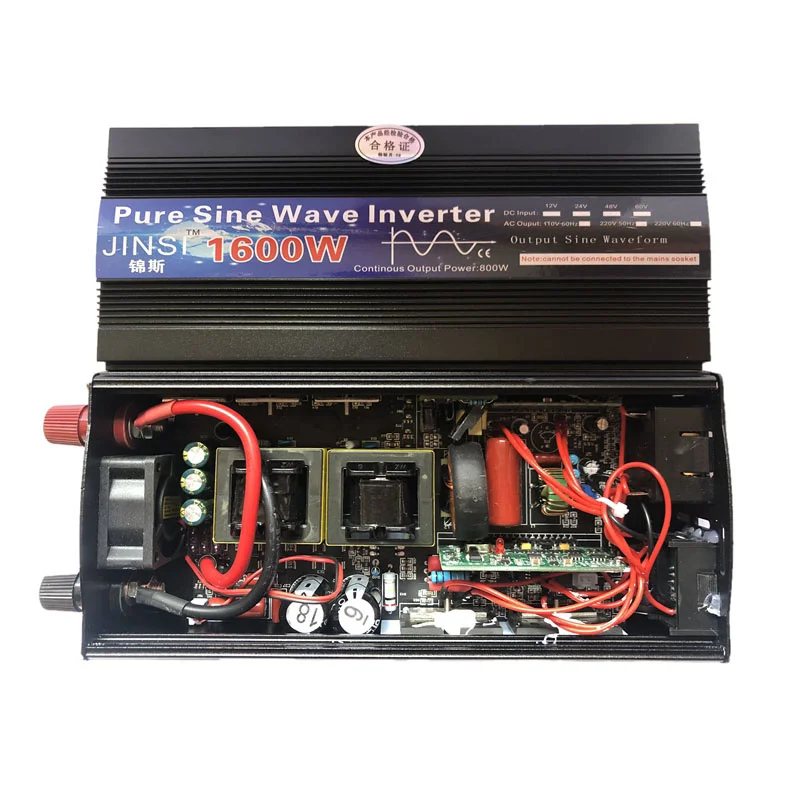

1600W pure sine wave inverter

Peak power: 1600W
Continuous power: 800W
Size: 26.0 * 10.3 * 6cm
Package weight: 1.35KG

2000W pure sine wave inverter

Peak power 2000W
Continuous power 1000W
Size: 29.3CM×10.3CM×6CM
Package weight 1.5kg

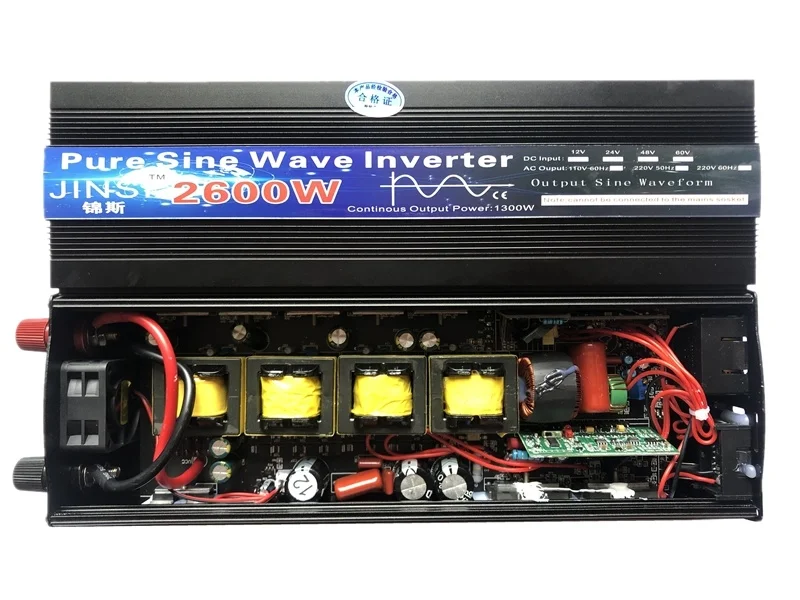

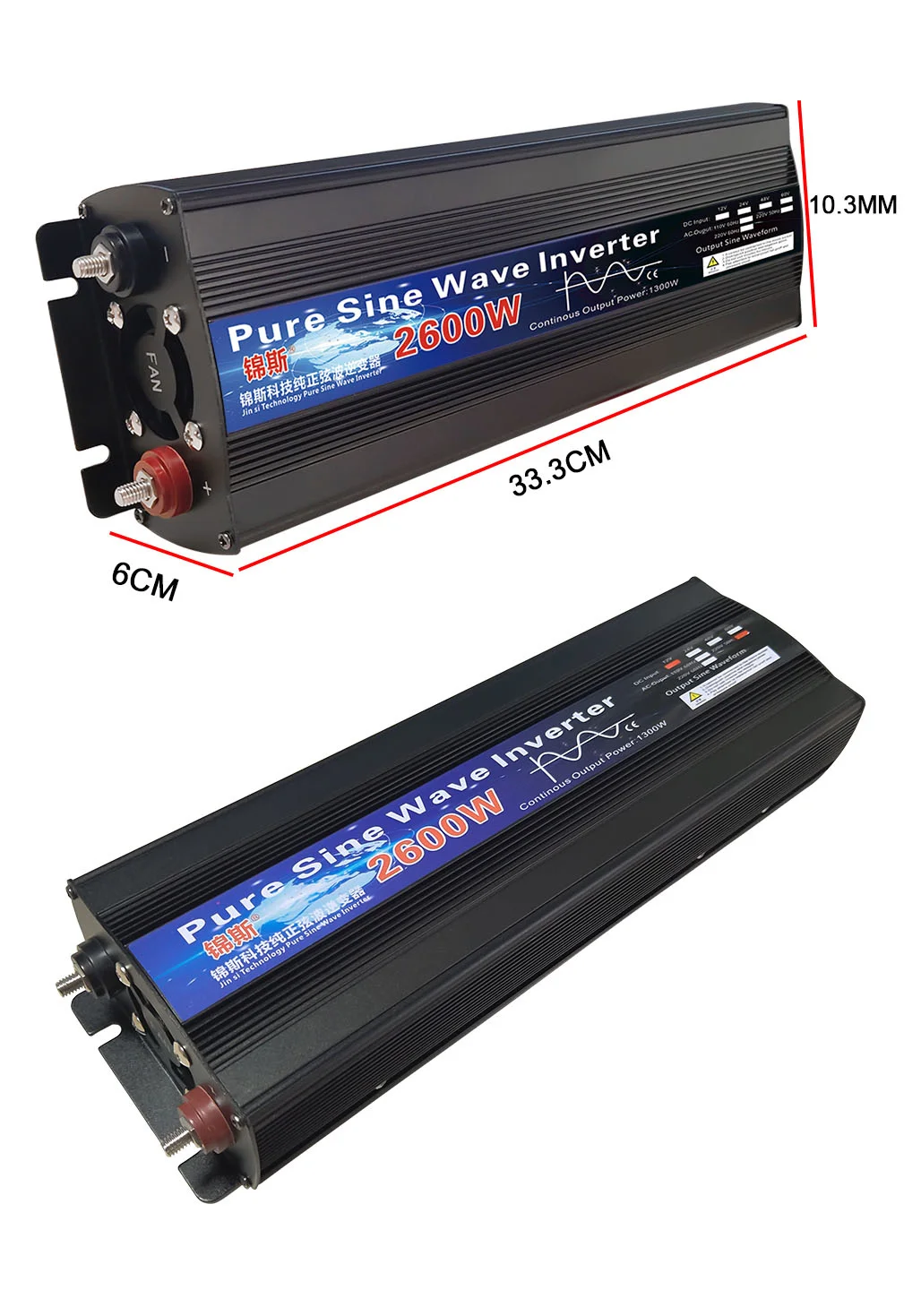

2600W pure sine wave inverter

Peak power 2600W
Continuous power 1300W
Size:33.3CM×10.3CM×6CM
Package weight 1.75kg

Working principle of inverter
A power conversion device that converts input low-voltage direct current into high-voltage stable alternating current output.
Instructions:
The output volts of the battery should be consistent with the DC input volts of the inverter. For example, a 12V inverter should be selected for a 12V battery, and the positive and negative poles of the battery should be distinguished when connecting.
H (working time) = U (voltage volts) × I (battery capacity) × 0.8 × 0.9 ÷ electrical power

Precautions
1. The inverter cannot be connected to the power grid and cannot be used to touch the AC output line. The battery equipped with the inverter can provide more power than the actual power consumption of the appliance. When the battery line is lengthened, the corresponding wire diameter must be doubled Crude.
2. Both of the inverter outputs are live wires, and there is no grounding problem. Do not use any one as a ground wire.
3. Connect the inverter to the load. Do not connect any air switch or leakage protection switch in the middle. Hard operation will not only fail to protect, but will damage the inverter.

Troubleshooting
1. The inverter is not working.
A. Check whether the plug is inserted in place and whether it is loose.
B. Whether the inverter switch is turned on.
C. Whether the car cigarette lighter jack has voltage output, such as external leads, and whether the polarity is correct.

2. Insufficient output power of the inverter can only drive low-power electrical appliances
A. The capacity of the battery is too small, and electrical appliances must be replaced or reduced.
B. The battery voltage is too low and must be charged or replaced.
C. If you change to another car, the inverter is normal, and you need to go to a professional repair shop to thicken the car cigarette lighter jack cable. The use of the cigarette lighter socket shall not exceed a load of 150W.
D. If it is an external battery, thicken the lead to shorten the lead length

3. The inverter does not work and the FALT light is off
A. The electrical power used exceeds the nominal power, causing protection. Reduce the use of electrical power
B. The battery voltage is too low, the battery must be charged or replaced
C. Reduce the use of power appliances
